Disney’s iconic It's a Small World is one of my mother’s favorite rides at Disney. For Christmas 2021, I made the ride’s memorable front entrance. This project came about after a year of working with complex SolidWorks assemblies at my job, so I felt comfortable modeling and creating everything from the ground up.
I first started the project with the most labor intensive and timely part, the CAD model. I spent a while between school and work responsibilities making a full model in SolidWorks of each component. I made sure when mated together there was correct movement for all parts to honor the ride. Each component was also designed to keep their manufacturing process in mind. For example, I knew I wanted to laser cut a lot of this project, so I made sure that parts were made using correct widths of plastic to stack and give me the shapes and layers I wanted.
Physically making this project wasn’t too labor intensive, as I made it mostly out of laser cut and 3D printed parts. The assembly came with a few hiccups, and I learned how to maintain a high level of organization with small parts. After assembly, I painted the structure to look like ride in Anaheim, CA, then moved onto the electronics.

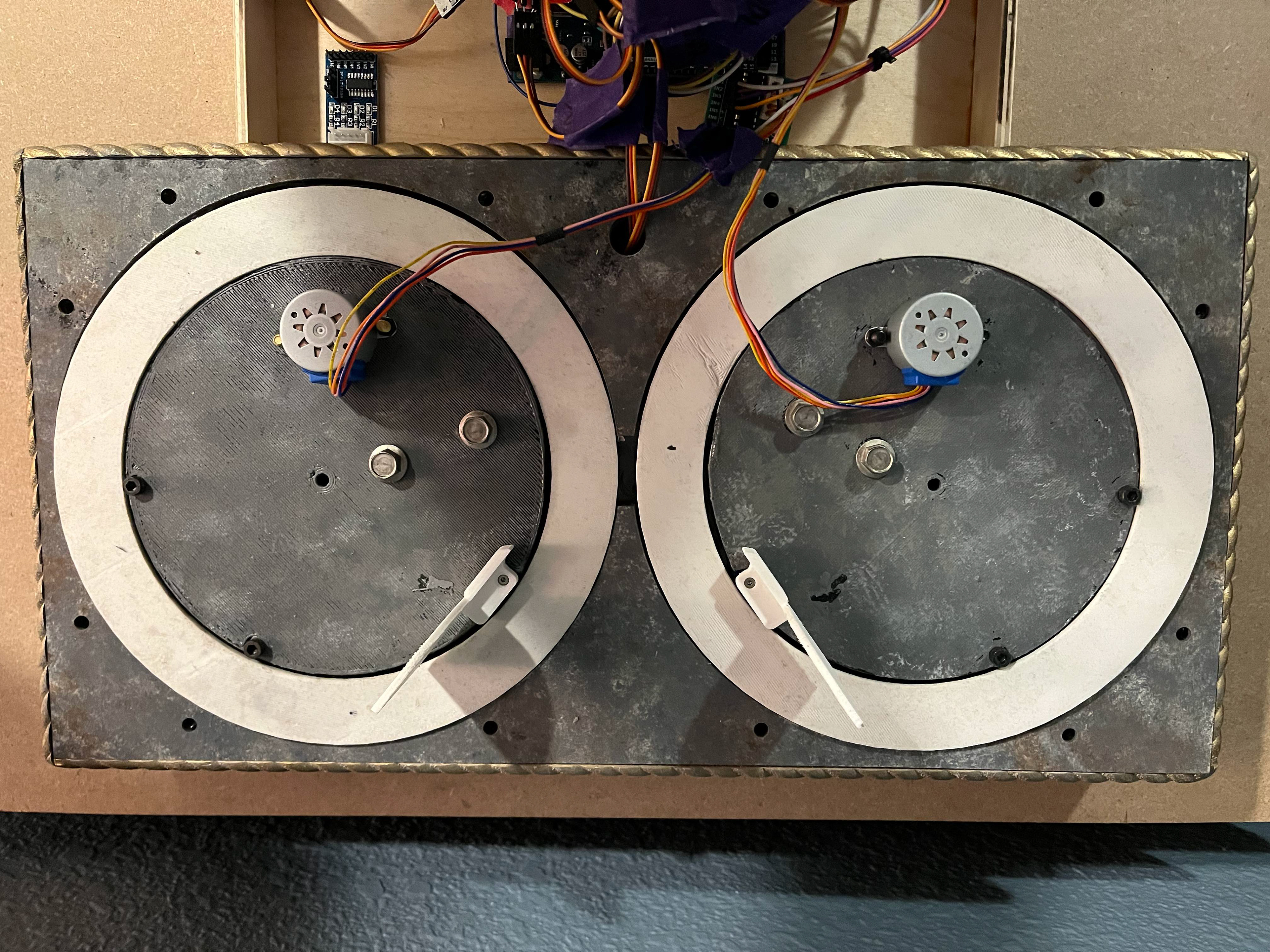

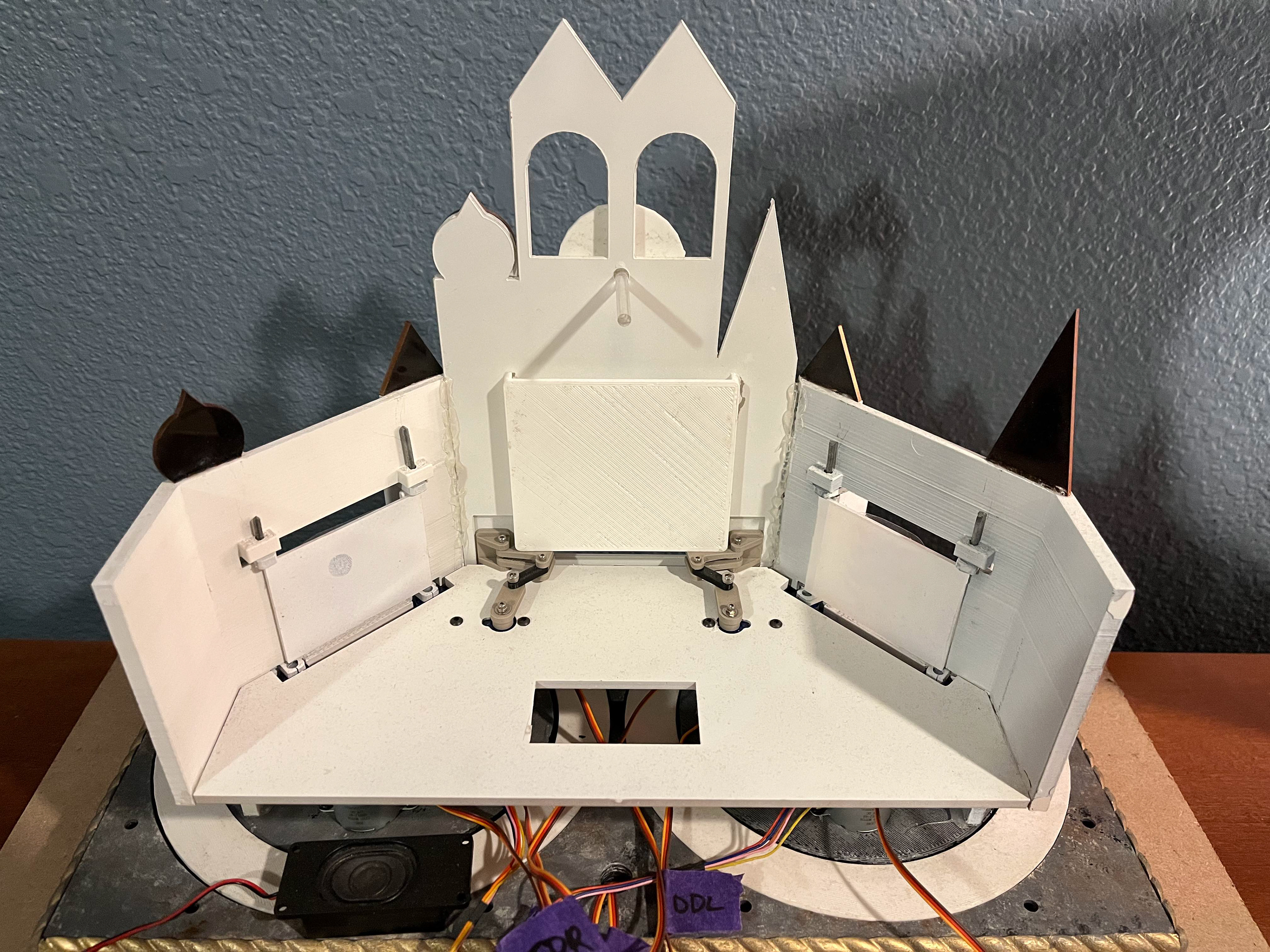

The electronics consisted of 8 servo motors, 2 step motors, and a speaker all controlled by an Arduino. This allowed for the doors to open, the big turntable like rings to rotate, and the original music to play.
Future Plans:
I unfornuatly was unable to finish the project in time for Christmas due to school. I finished everything apart from the characters that exit and enter the castle. I am currently working on those additions for Mother’s Day (don’t tell her). I have found that SolidWorks is not the best for this application, so I have began learning Maya in my free time. I will update the site as I continue to make progress.

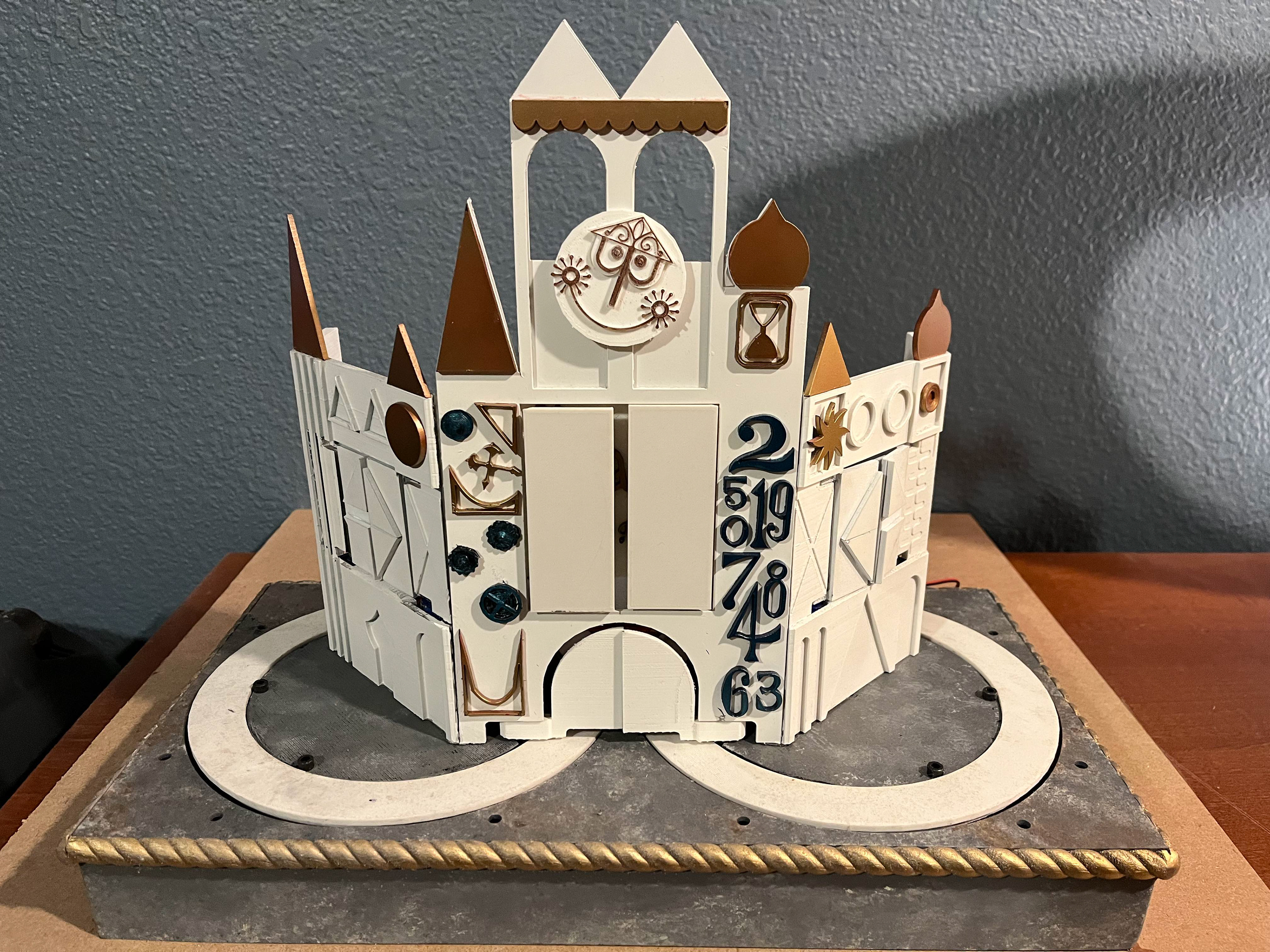

![](https://cdn.myportfolio.com/af92dd5c-433b-439f-8cf7-c2fb238907aa/4d4eb0d7-95f0-41e8-abf5-b59a144b7d34_rw_3840.jpg?h=90b1979efbc659abfa385bb84f079ec9)

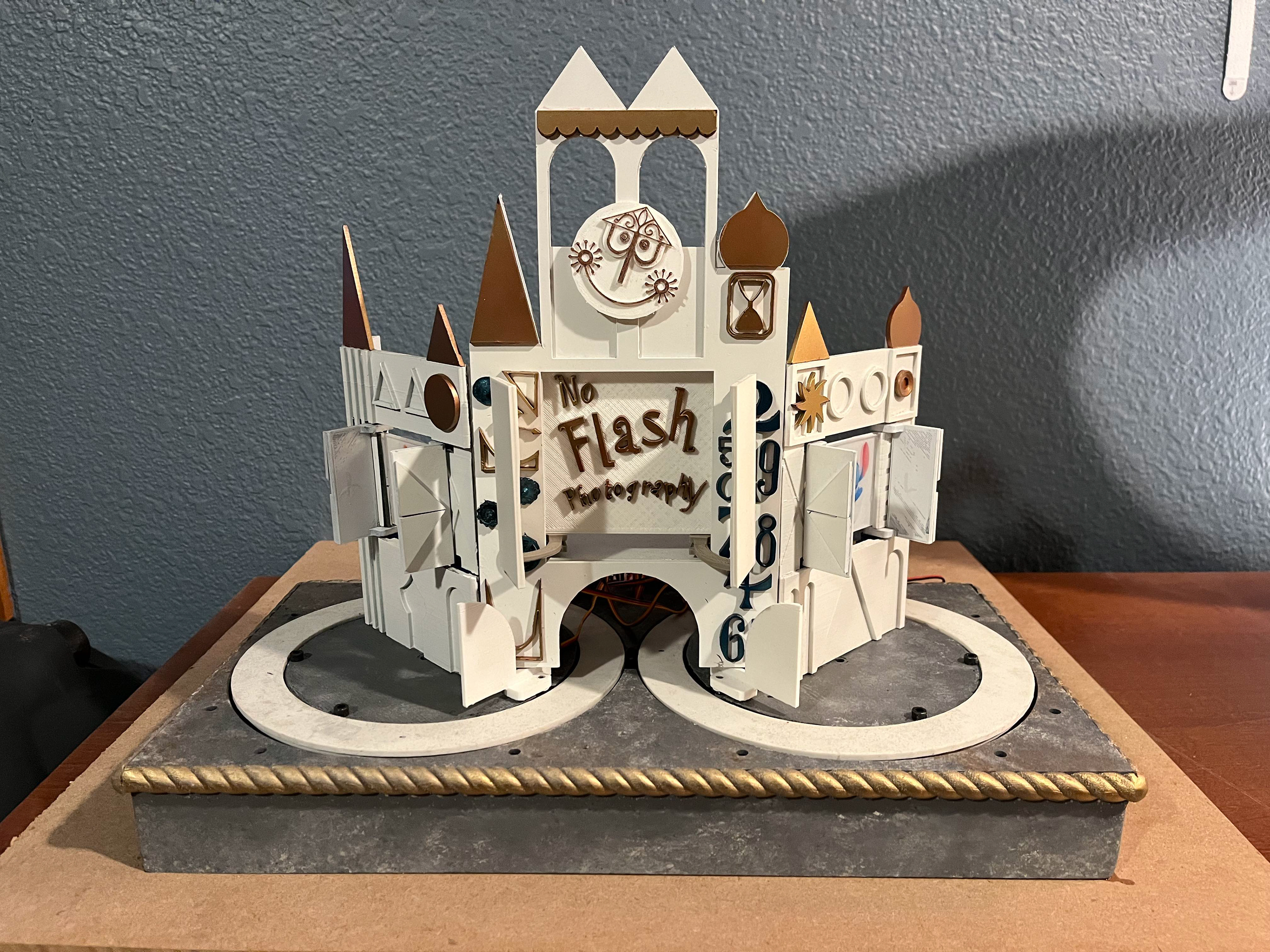

![](https://cdn.myportfolio.com/af92dd5c-433b-439f-8cf7-c2fb238907aa/d61e88ba-1672-43a2-b7d1-7c38e111807d_rw_3840.jpg?h=cb48b663d6dcfecaf42dbc39bea63786)

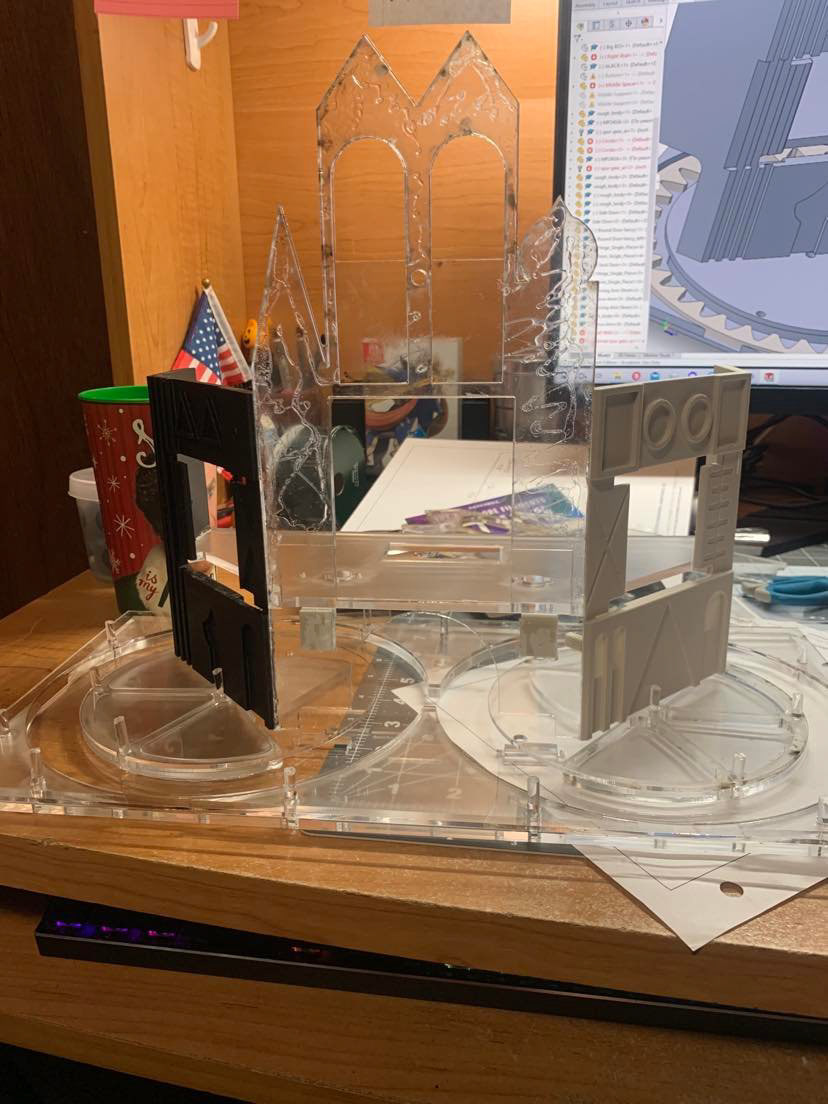

![First assembly, pre paint](https://cdn.myportfolio.com/af92dd5c-433b-439f-8cf7-c2fb238907aa/f8264153-3eae-4325-a614-2f6cdd77b840_rw_1200.jpg?h=cd557c1debf1d7e718220f6da50c6ca8)
First assembly, pre paint

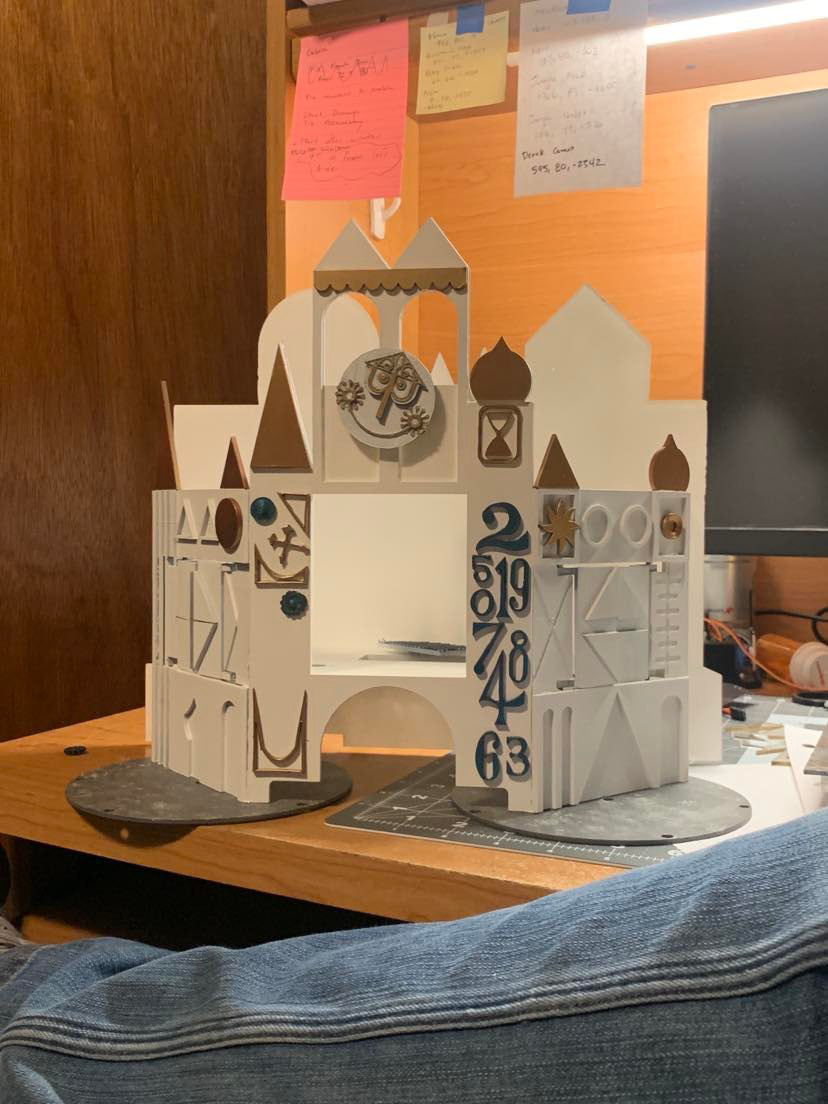

![First assembly, post paint](https://cdn.myportfolio.com/af92dd5c-433b-439f-8cf7-c2fb238907aa/75450ef4-06df-4d48-8a86-07a076c9c580_rw_1200.jpg?h=45c6a98f56e6fdbbfd7a6a4fcf0add71)
First assembly, post paint

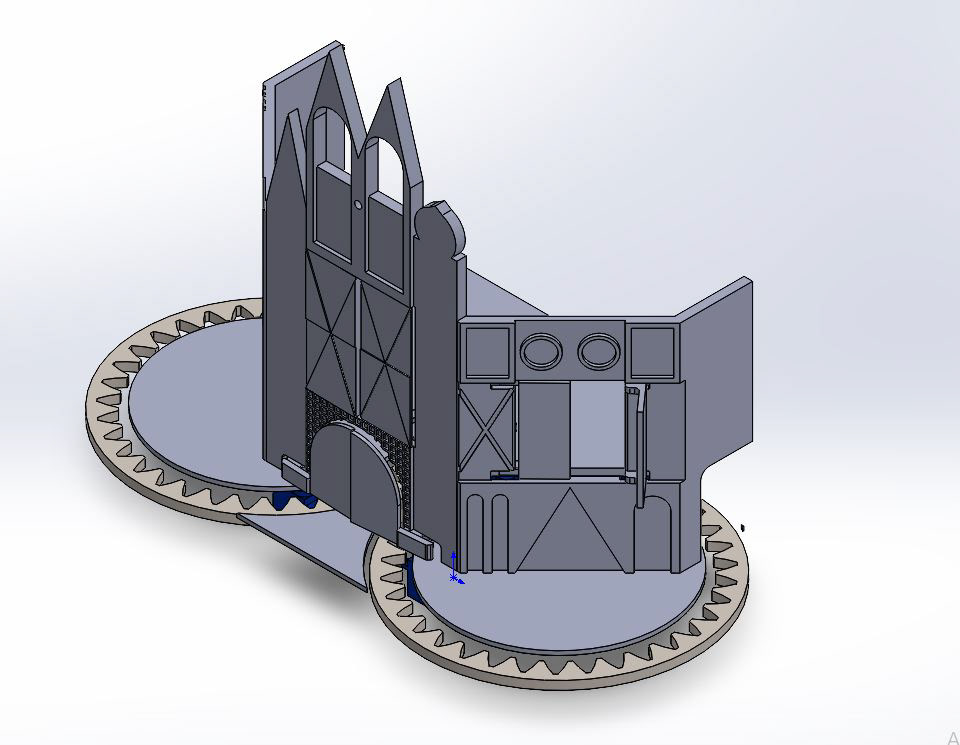

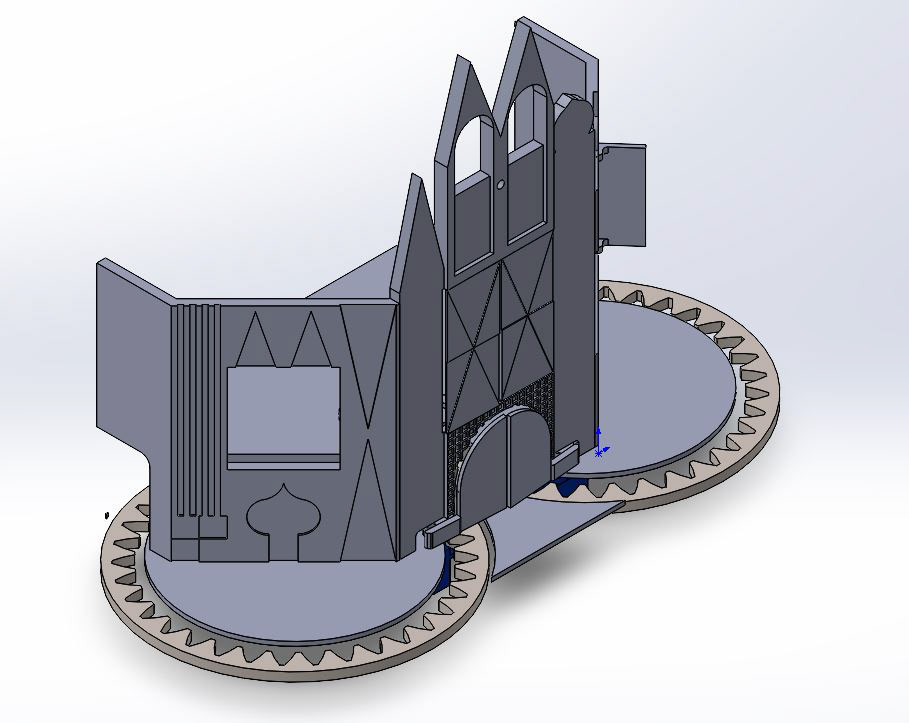

Isometric Model View
Isometric Model View

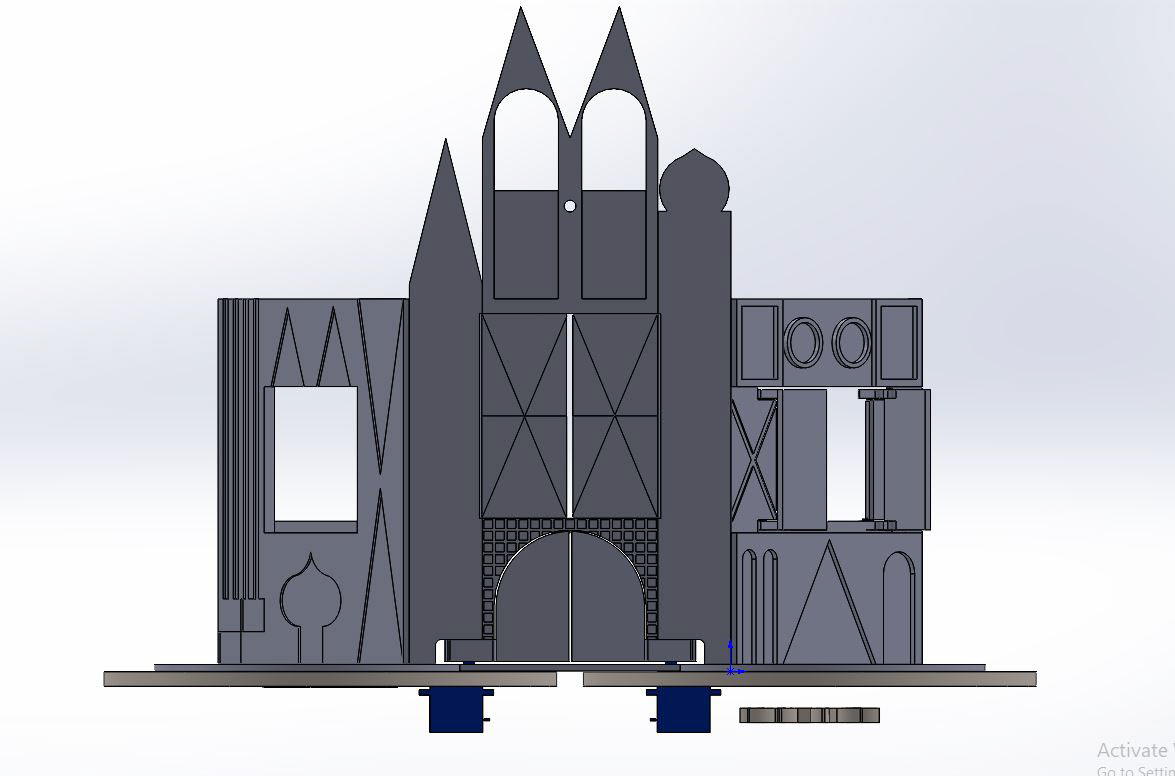

Front Model View

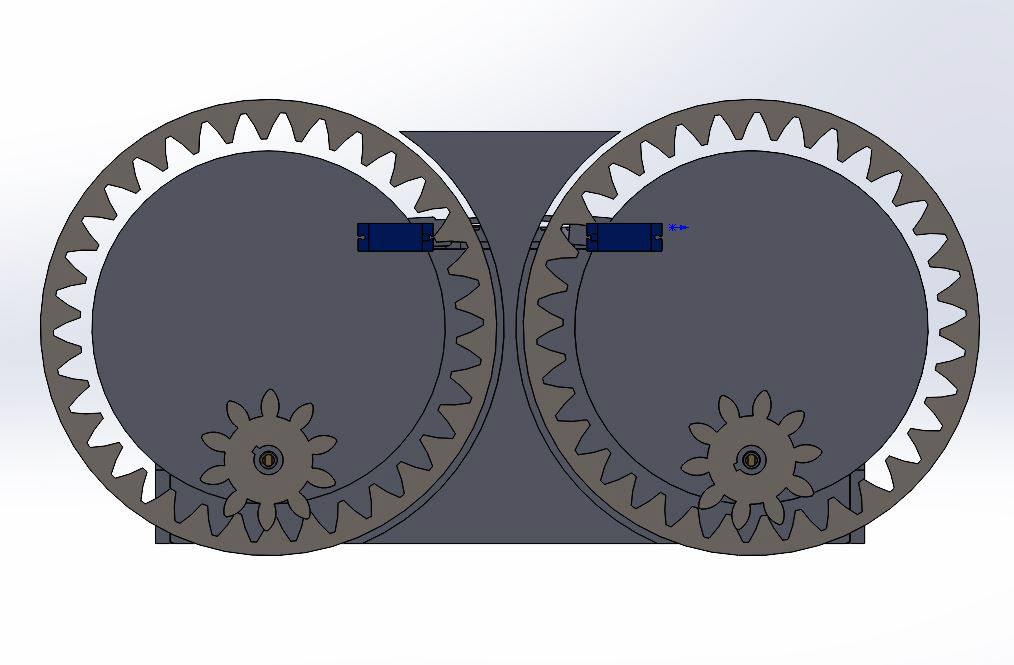

Bottom Model View

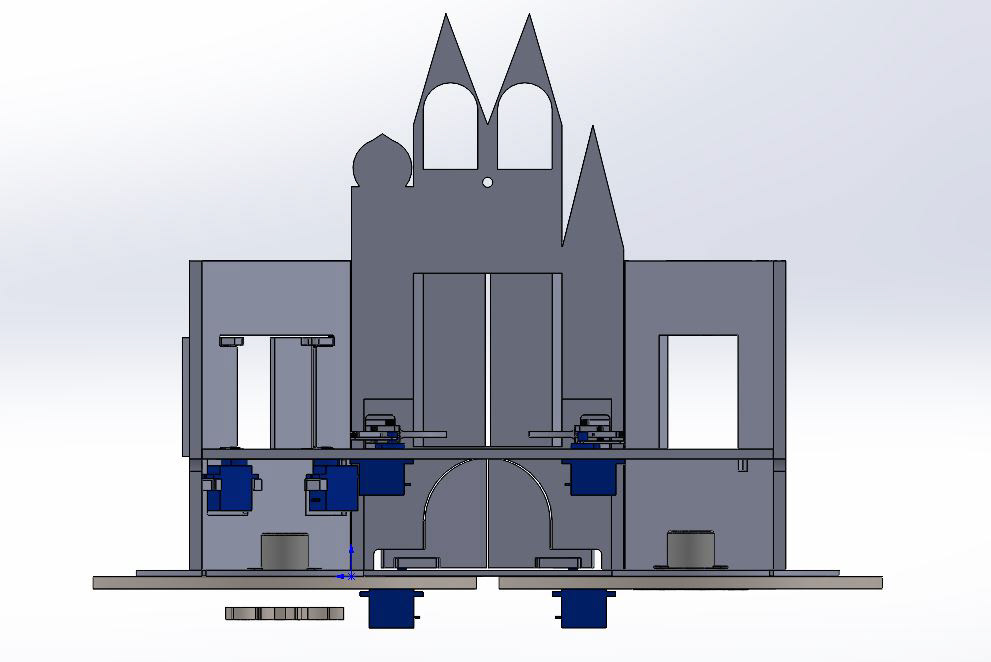

Back Model View
